Best USB-C hub with Ethernet provides gigabit RJ-45 connectivity, minimum 85W pass-through charging, and dedicated controller bandwidth for peripheral links without packet drops. Most laptop networking issues stem from underpowered USB hubs or PCIe-to-USB bridge controller throttling under thermal saturation. Choosing proper unit requires matching laptop DisplayPort Alternate Mode capabilities with internal USB bus topology.
USB-C Ethernet Hub Comparison
Evaluation below focuses on hardware interface limits, Ethernet PHY controllers, and host power requirements. Hardware suggestions represent specification analysis rather than destructive lab testing.
| Device | Ethernet Speed | USB Host Uplink | Pass-Through Power | Display Output | Card Reader |
|---|---|---|---|---|---|
| Anker USB-C Hub, 8-in-1 Multiport Ethernet Adapter | 10/100/1000 Mbps Gigabit | 10 Gbps USB 3.2 Gen 2 | 85W (100W PD input, 15W reserve) | HDMI up to 4K@60Hz (DP 1.4) | SD / microSD UHS-I |
Technical Buying Criteria: Controller Overhead and Power Margins
Ethernet over USB-C relies on dedicated USB-to-Ethernet controllers (commonly Realtek RTL8153 series or ASIX AX88179 chips). These chips translate raw Ethernet frames into USB packets. Under sustained local network transfers or low-latency workloads, performance depends on three engineering factors:
1. Host Bus Bandwidth Allocation
Standard USB-C ports share total physical wire bandwidth between video display streams and data lines. DisplayPort Alt Mode operating on DisplayPort 1.2 allocates four high-speed differential lanes for video, forcing USB data to downgrade to legacy USB 2.0 (480 Mbps) unless 4K@30Hz chroma subsampling drops lane usage. Modern controllers using DisplayPort 1.4 support Display Stream Compression (DSC). This configuration preserves two high-speed lanes for 10 Gbps USB data (USB 3.2 Gen 2), letting Gigabit Ethernet run at full duplex wire speed alongside 4K@60Hz video without throttling throughput. For expanded setups requiring dedicated multi-monitor streams alongside networking, dedicated hardware like those in our docking stations and USB hubs index provide alternate lane allocations.
2. Power Delivery Overhead and Voltage Sag
Bus-powered hubs extract energy directly from incoming USB Power Delivery (PD) lines to run internal silicon: Ethernet PHY transceiver, hub controller, SD card bridge, and HDMI level shifter. These internal circuits consume static power budget between 10W and 15W. When connecting 65W or 100W charger to pass-through port, hub deducts its reserve before passing remaining wattage to laptop. Using 65W laptop charger on hub with 15W internal tax yields only 50W net charging. Laptop under load drops battery charge or throttles CPU clock speeds. For systems needing uncompromised high wattage, check our recommendations for docking stations with 100W charging.
3. Thermal Dissipation and Driver Stability
Realtek and ASIX Gigabit Ethernet controllers generate moderate heat during high-throughput packet transfers. Compact plastic enclosures trap thermal energy, triggering internal thermal throttling in controller chip. Result shows as intermittent disconnects, sudden 100 Mbps drops, or elevated ping jitter. Metal aluminum unibody chassis serves as passive heatsink, drawing junction heat away from network controller to keep transfer rates steady.

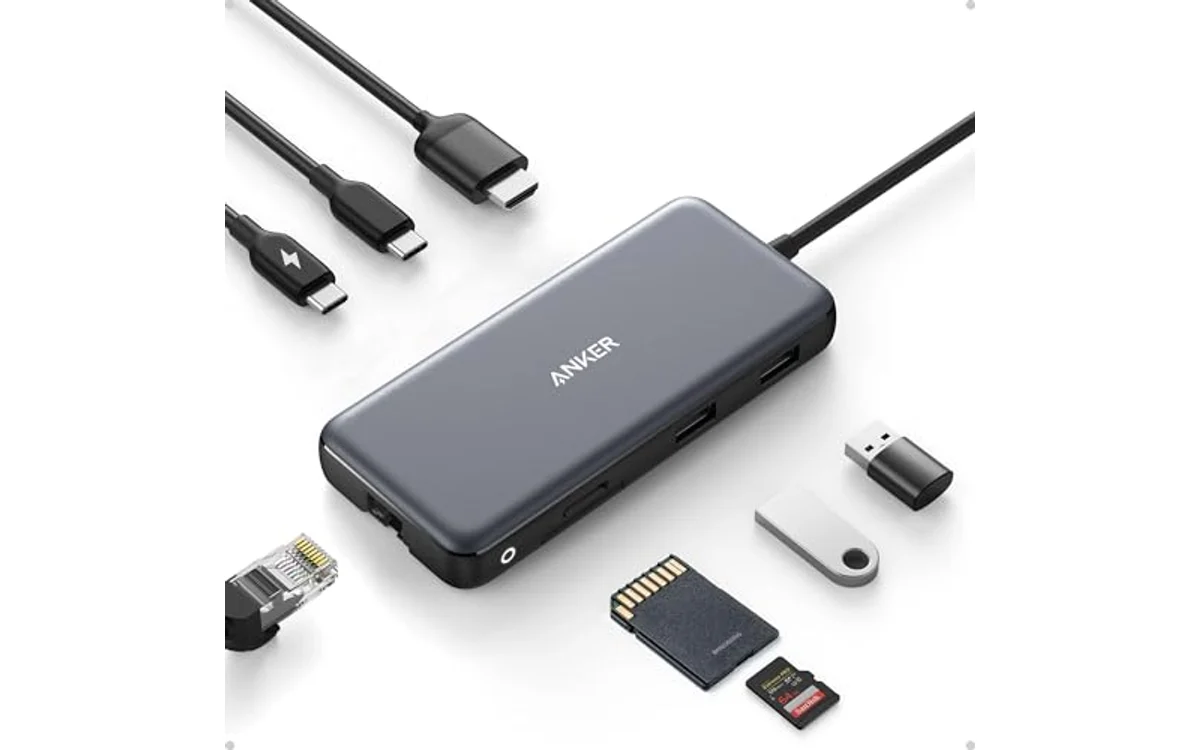

Top Specification Pick: Anker USB-C Hub (8-in-1)
[acms_product asin=”B087QZVQJX”]Anker USB-C Hub, 8-in-1 Multiport Ethernet Adapter
Anker 555 (model B087QZVQJX) provides balanced port selection designed for portable laptop use and desktop workstation expansion. Verify live pricing and availability via product card above.
Technical Specifications
- Ethernet Interface: Integrated RJ45 gigabit port (10/100/1000 Mbps auto-negotiation)
- Video Interface: 1x HDMI 2.0 (supports 4K@60Hz via DP 1.4 host; 4K@30Hz via DP 1.2 host)
- Data Ports: 1x USB-C 3.2 Gen 2 (up to 10 Gbps), 2x USB-A 3.2 Gen 2 (up to 10 Gbps)
- Power Input: USB-C PD input port, supporting up to 100W input
- System Delivery: Up to 85W pass-through charging to host device (15W reserved for hub circuitry)
- Card Reader: MicroSD and SD card slots
- OS Support: Windows 10/11, macOS 12+, ChromeOS (Note: Linux kernel support not officially validated by manufacturer)
Architectural Analysis
Anker 8-in-1 hub utilizes 10 Gbps USB 3.2 Gen 2 architecture. Unlike older 5 Gbps hubs, 10 Gbps backplane provides headroom to saturate gigabit Ethernet link (approx 940 Mbps net payload) simultaneously with fast external SSD transfers over USB-C data port. Fixed 7.48-inch integrated cable provides enough flexibility to clear laptop exhaust ports, reducing thermal contamination from host chassis.
Video pipeline behavior depends on host GPU DisplayPort generation. Laptops featuring DP 1.4 Alt Mode with DSC run 4K monitors at 60Hz while sustaining fast peripheral data. Older DP 1.2 devices drop refresh rate to 30Hz under 4K resolution due to lane limitation constraints. If desk setup requires dual displays alongside gigabit lines, check options covered in docking stations under $150.
Diagnostic Decision Matrix
Table below assists in diagnosing network performance bottlenecks or matching hub specifications to host device requirements.
| Symptom / Scenario | Likely Root Cause | Resolution Action |
|---|---|---|
| Ethernet negotiates at 100 Mbps instead of 1000 Mbps | Cable pin fault or switch port set to Fast Ethernet | Verify Cat5e/Cat6 cable integrity; inspect RJ-45 connector pins for debris; check switch port profile. |
| Intermittent network drops during large file transfers | Thermal saturation on PHY chip or USB power state drop | Place hub in open air; disable USB Selective Suspend in Windows OS; confirm 100W PD supply attached. |
| Laptop reports ‘Slow Charger’ warning notification | Hub internal reservation reduces net wattage | Upgrade wall adapter from 65W to 100W USB-C PD brick to offset 15W hub operational overhead. |
| Display limited to 4K@30Hz while network is active | Host system running DisplayPort 1.2 standard | Upgrade host system to DP 1.4 capable port or lower display output resolution to 1440p/1080p at 60Hz. |
| No network link lights on Linux workstation | Missing out-of-tree RTL/ASIX kernel drivers | Compile compatible vendor kernel module or select device officially validating Linux kernel stack. |
Pre-Deployment Verification Checklist
- Confirm Host Port Configuration: Check laptop manual to confirm target Type-C port supports DisplayPort Alt Mode and USB Power Delivery, not data-only transmission.
- Calculate Total Wattage Budget: Add host system factory power requirement (e.g., 65W) to hub reserve overhead (15W). Select power brick meeting or exceeding combined figure (80W minimum, use 100W PD charger).
- Validate Network Infrastructure: Ensure uplink patch cable is Cat5e, Cat6, or higher with all eight copper conductors intact; 4-wire cables limit link speed to 100 Mbps.
- Configure OS Power Management: Access Device Manager (Windows) or Network Settings (macOS). Disable energy-saving settings that allow operating system to cut power to USB controller during idle states.
Frequently Asked Questions
Does a USB-C hub with Ethernet introduce latency compared to native PCIe ports?
USB-to-Ethernet bridge controllers add negligible latency—typically between 0.1ms and 0.3ms—compared to internal PCIe network cards. This variance is unnoticeable for web browsing, office tasks, and standard network operations. Only extreme real-time industrial automation or hyper-competitive packet-sensitive gaming see minor benefits from dedicated PCIe hardware.
Why does my gigabit Ethernet hub only transfer files at roughly 110-118 MB/s?
Gigabit Ethernet runs at maximum theoretical raw signaling rate of 1000 Mbps. After deducting 8b/10b encoding, TCP/IP protocol headers, and frame framing overhead, maximum real-world throughput tops out around 940 to 950 Mbps. Dividing by 8 yields actual maximum file transfer ceiling between 112 and 118 Megabytes per second (MB/s). Transfer rate reflects physical wire limits, not hub defect.
Can I run USB-C hub Ethernet without plugging in external power supply?
Yes. Hub runs on bus power provided by host laptop port. Internal components draw energy directly from laptop battery, decreasing overall battery runtime. If high-draw devices like external hard drives or USB flash media connect at same time, bus power may become insufficient, leading to dropped network links.
Why does Ethernet connection drop when plugging or unplugging the USB-C charger?
When external USB-C power source connects or disconnects, USB PD controller initiates voltage renegotiation across entire power bus. This power role swap momentarily interrupts current to internal Ethernet bridge chip, resetting link for 2 to 5 seconds before re-establishing handshake.
Pros
- True 4K 60Hz refresh rate on supported DP 1.4 hardware
- High 10Gbps bandwidth across three separate USB ports
- Compact 0.28 lb chassis fits easily into laptop bags
- Stable wired networking via integrated Gigabit RJ45 port
Cons
- Requires 100W PD charger to supply full 85W pass-through
- USB-C port supports data transfer only, not secondary display
- Lacks compatibility with Linux operating systems
Video Output: 1x HDMI up to 4K@60Hz (DP 1.4) or 4K@30Hz (DP 1.2)
Data Ports: 1x USB-C 3.2 Gen 2 (10Gbps), 2x USB-A 3.2 Gen 2 (10Gbps)
Power Delivery: 100W input, up to 85W host output (15W operational reserve)
Networking: 1x Gigabit Ethernet RJ45
Card Reader: SD and microSD slots
Dimensions: 4.76 x 2.17 x 0.60 inches; Weight: 0.28 lbs
Compatibility: Windows 10/11, macOS 12+, ChromeOS (Linux unsupported)
| Color | Gray |
|---|---|
| Size | 8-in-1 |
| Dimensions | 4.76377 x 2.16535 x 0.602361 Inches |
| Weight | 0.28 Pounds |
| Product Group | Electronics |
| Binding | Personal Computers |
Best suited to shoppers comparing usb hubs products who specifically need fluid 4K 60Hz video output over HDMI on DisplayPort 1.4 laptops, Blazing 10Gbps transfer rates on USB-C and dual USB-A data ports.
Before buying, compare the exact model’s compatibility, dimensions, core specifications, warranty, recurring owner feedback, and current price against other usb hubs options. Retailer availability and pricing can change after publication.
Sources and Verification
Research basis: Product identity, dimensions, interfaces, supported features, and warranty terms are checked against available manufacturer documentation and current retailer listings. Price, stock, and aggregate customer ratings can change after publication.
Testing disclosure: Unless this article explicitly states that PCGearWiki performed hands-on testing and describes the test setup, recommendations are research-based editorial evaluations rather than PCGearWiki laboratory measurements. Customer feedback is used to identify recurring ownership patterns, not as proof of technical performance.
Last source review: October 2, 2026. See our Review Methodology, Editorial Policy, and Corrections Policy.
