Running 4K resolution at 60Hz over a USB-C hub requires DisplayPort 1.4 Alternate Mode from the host machine. Older DP 1.2 ports lack the bandwidth to run uncompressed 4K 60Hz video while simultaneously routing USB 3.0 data lines, forcing the display down to 30Hz or USB down to 2.0 speeds. For single-cable compact setups, select a hub with native HDMI 2.0 output and a minimum of 85W net Power Delivery pass-through.

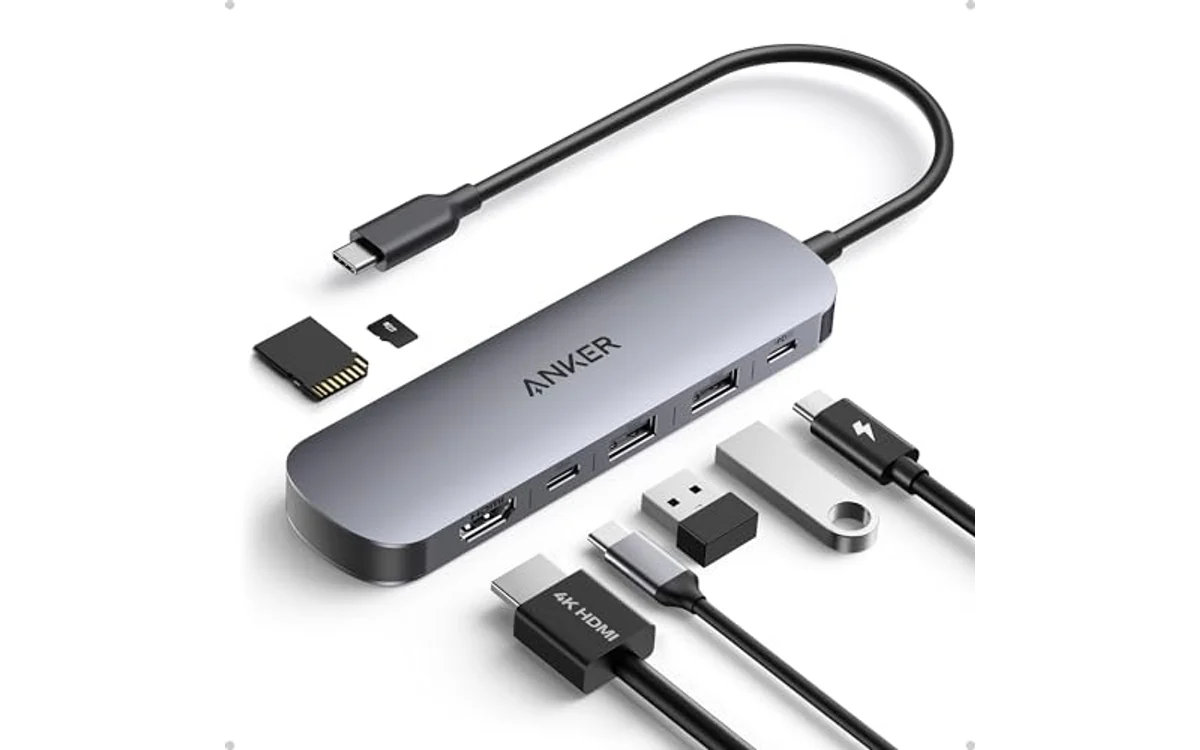

Anker USB C Hub
1
-27%
Anker 7-in-1 USB-C Hub with 4K@60Hz HDMI, 85W Power Delivery, SD Card Reader, and 5Gbps Data Ports
Best Seller

Anker 7-in-1 USB-C Hub with 4K@60Hz HDMI

Anker
9.4 /10 Excellent
Editorial Score
This score is based on the average customer rating of the product at the retailer, converted to a 10-point scale. It is not a laboratory measurement. Product order in this guide follows its buying criteria. Learn more ›
$25.99 Save $7.00
$18.99
Anker 7-in-1 USB-C hub delivers fluid 4K 60Hz video output and 85W passthrough charging in portable aluminum body. Ideal companion for remote workers and students needing display expansion with legacy USB connectivity.
Pros & Cons

Pros

  • Supports 4K resolution at smooth 60Hz refresh rate
  • Passes up to 85W charging power directly to laptop
  • Offers both SD and microSD card slots for creators
  • Compact footprint weighs under 2.5 ounces for travel

Cons

  • USB-C data port lacks video passthrough support
  • Hub reserves 15W of input power for internal operation
  • Data transfer capped at 5Gbps rather than faster 10Gbps standard
Specifications

Input connector: Attached USB-C cable.

Display output: HDMI port supporting resolutions up to 4K at 60Hz.

Power delivery: USB-C PD port supports up to 100W power input with up to 85W passthrough laptop charging.

Data transfer: Two USB-A 3.0 ports at 5Gbps, one USB-C data port at 5Gbps.

Card expansion: Standard SD slot and TF microSD slot.

Dimensions: 5.17 x 1.46 x 0.47 inches; Weight: 0.15 lbs.

The hardware suggestions below rely strictly on verified manufacturer technical specifications, not physical laboratory tear-downs or long-term durability measurements. Always check live prices on the product cards below, as hardware prices fluctuate across vendors.

USB-C 4K 60Hz Hardware Comparison

Hub ModelHDMI OutputHost Power DeliveryUSB Data PortsCard Reader
Anker USB-C Hub (7-in-1)HDMI 2.0 (4K @ 60Hz)Up to 85W net (100W input)2x USB-A (5Gbps), 1x USB-C (5Gbps)SD + microSD (TF)

Top Specification Pick: Anker USB C Hub, 7in1 Multi-Port USB Adapter

Anker USB C Hub, 7in1 Multi-Port USB Adapter handles standard single-display desktop expansion using an integrated USB-C pigtail cable. The compact chassis combines a dedicated video controller, USB data splitters, card readers, and a Power Delivery controller into a portable frame.

Port Array and Bandwidth

The video pipeline routes via a single HDMI port capable of 3840×2160 output at a 60Hz refresh rate. The host port must support DP 1.4 Alt Mode to hit this refresh target. Data traffic routes through two USB-A 3.0 ports and one USB-C data port, each capped at a 5Gbps shared line speed. The USB-C port does not route display signals; external display output runs solely over HDMI.

Power Distribution Limits

Power Delivery input accepts up to a 100W power supply. The hub’s internal chipset consumes approximately 15W as an operational reserve to run connected peripherals, the SD card interface, and video conversion. Maximum net charging delivered to the connected laptop stops at 85W. Machines demanding higher continuous intake should review dedicated high-draw options in the guide to best docking station with 100W charging hardware.

Storage Card Expansion

The hub includes a dual-slot flash storage interface handling standard SD and microSD (TF) formats. Speeds operate within standard UHS-I bus limits, suitable for field photo offloads, configuration file backups, and firmware staging without needing standalone card readers.

Bandwidth Mechanics: DP 1.2 vs. DP 1.4 Alt Mode

The USB-C connector contains four high-speed differential pairs (lanes). Alternate Mode reconfigures these physical pins dynamically between video transfer and standard USB data transfer.

Host DP Alt Mode VersionLane AllocationUSB Data SpeedMax HDMI Resolution/Refresh
DisplayPort 1.24 Lanes (Video Only)USB 2.0 (480Mbps via dedicated pins)4K @ 60Hz (No high-speed USB data)
DisplayPort 1.22 Lanes Video / 2 Lanes DataUSB 3.0 (5Gbps)4K @ 30Hz or 1080p @ 60Hz
DisplayPort 1.4 (No DSC)2 Lanes Video / 2 Lanes DataUSB 3.0 (5Gbps)4K @ 60Hz (8-bit color depth)
DisplayPort 1.4 (With DSC)2 Lanes Video / 2 Lanes DataUSB 3.0 / 10Gbps4K @ 60Hz / 4K @ 120Hz (10-bit HDR)

Legacy DP 1.2 systems lack lane throughput. Splitting lanes to maintain 5Gbps USB data restricts video bandwidth to 8.64Gbps, which caps the frame rate at 30Hz for 4K panels. Achieving simultaneous 4K 60Hz and 5Gbps USB data requires DP 1.4 host hardware to extract 12.96Gbps out of the identical two-lane physical wiring. For permanent multi-monitor workstations, examine category specs across general docking stations and USB hubs.

Display Diagnostic and Compatibility Matrix

Verify the machine platform before troubleshooting adapter hardware. Hardware limitations produce distinct operational failures:

SymptomRoot CauseResolution Step
Display caps at 4K 30HzHost graphics port only delivers DP 1.2 Alt Mode bandwidth.Drop desktop resolution to 2560×1440 or 1080p to restore 60Hz motion.
Monitor flickers or drops syncHDMI cable run exceeds passive copper signal integrity distance.Swap to certified HDMI 2.0 Premium High Speed cable under 2 meters length.
Hub disconnects under SSD loadHost laptop charger lacks wattage headroom after 15W hub power reservation.Upgrade wall adapter to 100W PD 3.0 charger brick.
No video signal detectedUSB-C host port on laptop lacks video wiring entirely (data-only port).Relocate hub connection to port marked with DisplayPort logo or Thunderbolt lightning icon.

Pre-Purchase Compatibility Checklist

  1. Confirm Host Protocol: Check the system spec sheet. The host must state Thunderbolt 3, Thunderbolt 4, USB4, or USB-C 3.2 Gen 2 with DisplayPort 1.4 Alternate Mode.
  2. Calculate Net Power Draw: Match the laptop thermal design power (TDP). A laptop needing 65W requires a minimum 80W to 85W wall charger connected to the hub pass-through port.
  3. Cable Rating: Verify the target HDMI cable is explicitly stamped “Premium High Speed” (18Gbps throughput). Substandard cables trigger intermittent sync loss at 60Hz.
  4. Desktop Routing Alternative: Users routing dual high-resolution displays between two host machines should review hardware routing limits via best kvm switch for dual 4k monitors rather than daisy-chaining mobile pass-through hubs.

Frequently Asked Questions

Why does my 4K monitor only show 30Hz when plugged into a USB-C hub?

The host machine outputs the DisplayPort 1.2 protocol instead of DisplayPort 1.4. DP 1.2 ports cannot split high-speed lanes between USB 3.0 data and 4K video simultaneously without capping the refresh rate at 30Hz. Update the host hardware or run a dedicated single-purpose USB-C to HDMI cable without data hub functions.

Does a 100W PD input mean the laptop receives the full 100W?

No. Multi-port USB-C hubs consume operational power to run card readers, controller chips, and line signal boosters. A 100W input delivers approximately 85W net output to the connected host computer. For stationary full-power desktop setups, check units listed in the best docking station under $150 guide.

Can I plug a second monitor into the hub USB-C data port?

No. Secondary USB-C ports on compact hubs route data transfer protocols only. They lack DisplayPort Alt Mode routing hardware. Displays must use a dedicated HDMI interface.
