Quick answer: Webcam field of view (FOV) measures observable area captured by camera sensor, expressed in degrees across diagonal, horizontal, or vertical plane. Choosing correct FOV determines whether frame shows head-and-shoulders crop or entire room, balancing distortion against background exposure.

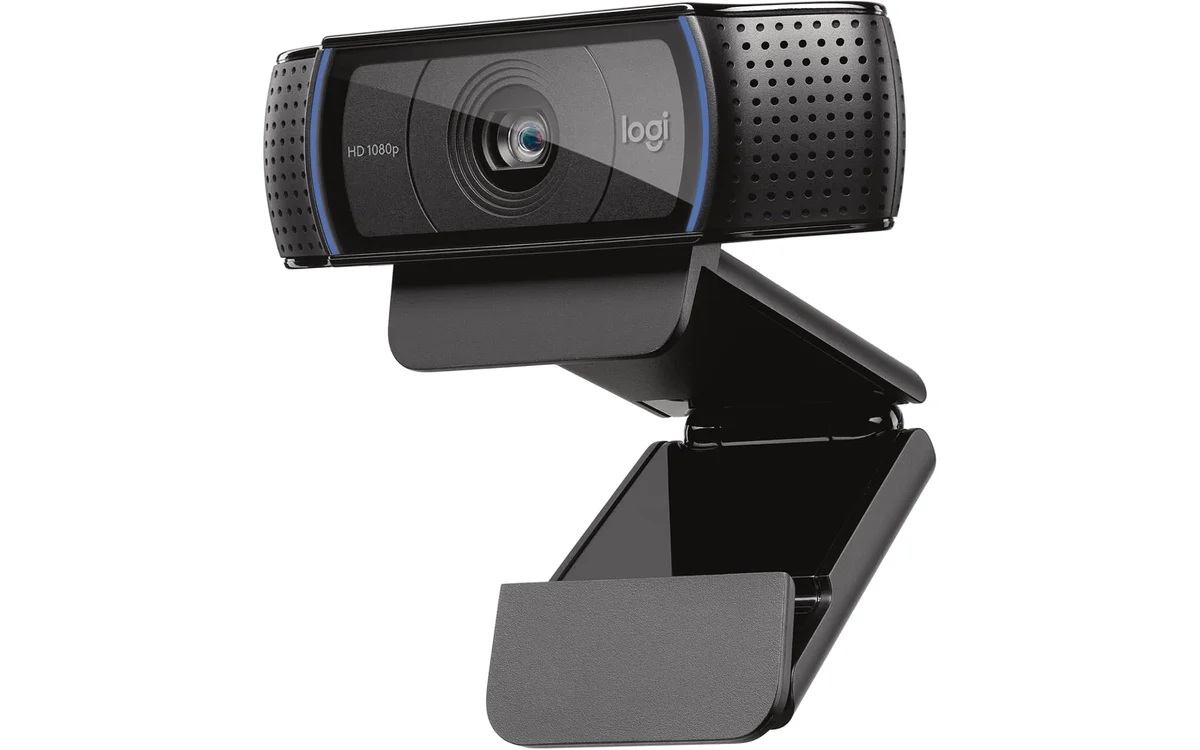

Logitech C920x HD Pro PC Webcam

Short answer: Webcam field of view (FOV) dictates angular extent of observable world imaged by camera sensor at fixed distance. Typical models span 65° to 90°. Narrow angles isolate single user. Wide angles accommodate multiple participants or whiteboards but introduce barrel distortion at perimeter.

Field of view directly impacts desktop layout, lighting needs, and stream presentation. Modern desktop setups feature diverse camera options, cataloged across our dedicated Webcams hub. Selecting improper angle results in unwanted room clutter or awkward cropping, requiring digital zoom that degrades effective resolution.

What Is Webcam Field Of View Explained?

Field of view refers to maximum angular coverage camera lens projects onto image sensor. In desktop video context, manufacturers state measurement in degrees (°). Higher number captures wider scene. Lower number creates tighter crop on subject.

Webcam packaging often obscures measurement orientation. Three separate planes exist:

  • Diagonal Field of View (DFOV): Measured corner to opposite corner. Largest number on box. Common marketing spec.
  • Horizontal Field of View (HFOV): Measured left frame edge to right frame edge. Best metric for room width calculation.
  • Vertical Field of View (VFOV): Measured top frame edge to bottom frame edge. Dictates ceiling and desk visibility.

Marketing materials routinely print DFOV without label. 90° DFOV camera does not capture 90° across horizontal plane. In standard 16:9 aspect ratio, 90° DFOV yields roughly 82° HFOV and 52° VFOV. Confusing diagonal angle with horizontal width leads to misjudged room coverage.

How Webcam Field Of View Explained Works

FOV depends on two hardware components: lens focal length and physical image sensor dimensions. Equation links variables directly: wider physical sensor or shorter focal length expands angle of view.

Focal Length and Sensor Size

Focal length represents distance between optical center of lens and sensor surface when focused at infinity. Miniature sensors (such as 1/4-inch or 1/2.8-inch formats common in desktop units) require short focal lengths (often 2mm to 4mm) to achieve wide angles. Shorter focal length pushes elements apart optically, bending light sharply to encompass wide scenes onto compact silicon surface.

Optical FOV vs Digital FOV Adjustment

Webcams advertised with multiple FOV toggles (for instance, switching between 65°, 78°, and 90°) rarely feature motorized optical zoom elements due to space and cost limits. Hardware retains fixed ultra-wide lens. Switching to narrower angle commands driver or on-board image signal processor (ISP) to crop active sensor area.

Digital cropping sacrifices resolution. On native 4K sensor, cropping 90° view down to 65° retains sufficient pixel density for clean 1080p stream. On native 1080p sensor, cropping to 65° uses fractional center pixels, scaling image digitally and introducing interpolation artifacts, noise, and softening.

Optical Distortion and Edge Stretching

Wide-angle lenses curve light toward edges. Rectilinear projection maintains straight lines but stretches objects near frame borders. Fisheye projection bends straight lines into curves. Webcams past 80° HFOV frequently suffer barrel distortion, bending doorways and walls. Software distortion correction straightens lines, but crops edge pixels and reduces sharpness in corners.

Why Webcam Field Of View Explained Matters

Choosing proper FOV affects daily productivity, broadcast clarity, and physical space requirements across multiple use cases.

Professional Calls: Tight 60° to 70° FOV frames head and shoulders naturally at arm’s length (50-70 cm from monitor). Cuts out unmade beds, busy backgrounds, and domestic traffic without virtual green screens that outline hair with rendering artifacts.

Content Creation: Streamers building custom sets prefer 78° to 90° FOV. Wider angle integrates branded background accents, collectible shelving, and secondary lighting. Broadcasters looking for ideal hardware pairing can explore our Best Webcam For Streaming guide.

Multi-Person Conferencing: Boardrooms or huddle spaces require 90° to 120° FOV. Narrow optics force participants to crowd together. Ultra-wide optics keep three to four seated individuals in frame simultaneously.

Lighting Demands: Broad angles capture more physical room area, demanding uniform illumination. Narrow angles isolate user, letting single key light and fill light handle exposure without illuminating entire room.

Quick Comparison

Summary of common diagonal field of view standards found across consumer webcams:

DFOV Angle Equivalent HFOV (16:9) Primary Framing Style Optimal Use Case Optical Trade-off
60° – 65° 52° – 57° Tight portrait (head and shoulders) Solo remote work, untreated home offices Minimal distortion; zero room context
78° – 82° 70° – 74° Medium portrait (waist-up, keyboard visible) Solo gaming stream, interactive presentations Mild edge stretch; reveals adjacent room area
90° 82° Wide shot (upper body plus surroundings) Desk demos, duo streaming, wide set design Noticeable barrel distortion without software correction
100° – 120° 92° – 110° Ultra-wide environmental shot Huddle rooms, group meetings, whiteboards Heavy edge distortion; small subject face size

Real-World Examples

Scenario 1: Small Bedroom Office Desk
User sits 55 cm away from 27-inch display mounting 90° DFOV camera. Broad horizontal span captures messy closet doors on left, open doorway on right, and large swaths of ceiling. User crops image in software down to 65° to hide room. Because camera uses 1080p sensor, digital crop reduces video feed to sub-720p equivalent resolution, introducing visible pixel blur. Correct hardware choice: native 65° webcam preserving full sensor raster.

Scenario 2: Hardware Unboxing Stream
Streamer positions camera 1 meter back to display wide desk surface, assembly tools, and chassis build. 65° lens cuts off hands and edges of motherboard box, forcing camera mount to ceiling. 90° DFOV camera captures entire 140 cm desk width from standard monitor distance, showing hands, workspace, and peripheral monitors without repositioning mount.

What to Look For When Buying

Select webcam FOV using physical constraints and technical metrics:

  • Look for explicit horizontal ratings: Check technical datasheets for HFOV. Do not rely solely on headline DFOV.
  • Prioritize 4K sensors if relying on digital FOV switches: Native 3840×2160 resolution permits 1080p center-crop at narrower field without interpolation loss.
  • Verify on-board distortion correction: Ultra-wide optics (90°+) require hardware-level or driver-level de-warping to prevent curved monitor bezels and bent walls.
  • Check working distance: Measure monitor-to-face distance. Under 60 cm warrants 65° to 78°. Over 90 cm requires 78° to 90° to avoid tiny subject appearance.
  • Examine mount flexibility: Lenses above 80° capture desk surface if tilted down. Ensure stand or monitor clip features stable tilt friction.

Review comprehensive testing methodology in How We Evaluate Products to understand optical validation benchmarks.

Common Mistakes to Avoid

  • Assuming larger FOV numbers indicate superior quality: Higher degrees capture wider areas, not sharper images. Wide lenses spread sensor pixels across larger physical space, reducing pixels-per-degree on face.
  • Treating digital zoom identical to optical focal adjustments: Digital crop discards outer sensor pixels. Narrowing view on budget camera causes visual grain.
  • Ignoring sensor aspect ratios: 4:3 native sensors cropped to 16:9 lose vertical coverage. Always check actual output aspect ratio FOV.
  • Sitting close to ultra-wide lens: Placing face within 40 cm of 90° lens enlarges nose and stretches ears horizontally due to perspective distortion.
  • Overlooking audio integration: Pairing wide FOV camera with desktop mic invites room echo; wide angles encourage user to sit further back. High-fidelity audio pairing requires dedicated hardware, detailed in our best gaming pc microphone guide.

Compatibility and Software Control

Webcam FOV connects directly to platform software stacks via USB Video Class (UVC) standards. UVC controls allow host operating systems (Windows, macOS, Linux) to issue Pan, Tilt, and Zoom (PTZ) commands straight to camera hardware.

Software suites like OBS Studio, Zoom, Microsoft Teams, and Discord interface with these controls differently. Zoom and Teams apply application-level digital crops without changing USB stream metadata. Streaming software such as OBS allows direct hardware-level cropping via transform filters, giving creator fine control over visible angles while maintaining exact canvas aspect ratios.

When broadcasting at high bitrates, pairing wide captures with hardware encoding becomes essential. Creators can examine encoder performance nuances in our NVENC vs AV1 streaming analysis.

Expand setup clarity with related PC hardware guides:

Why You Should Trust PCGearWiki

PCGearWiki focuses entirely on technical hardware reality over marketing promotion. Our breakdowns dissect optical schematics, sensor physics, driver compatibility, and firmware behavior. We do not invent lab test figures, benchmark charts, or synthetic scoring systems. Recommendations stem from transparent hardware documentation, empirical sensor sizing calculations, and objective compatibility limits to ensure buyers choose correct hardware on initial purchase.

Final Thoughts

Webcam field of view establishes balance between subject focus and environmental exposure. For solo desk workers and private home offices, narrow 60° to 70° DFOV optic isolates subject and prevents digital cropping artifacts. For multi-person spaces, studio sets, and whiteboard presentations, 90° or wider lens provides necessary spatial coverage, provided users account for lens distortion and background illumination.

Frequently Asked Questions

Is a wider webcam field of view always better?

No. Wider field of view captures more surrounding room, showing untidy spaces, unpainted walls, and background activity. Wide angles also lower pixels-per-inch on user’s face, reducing facial detail compared to narrow lens positioned at identical distance.

What is the difference between diagonal and horizontal FOV?

Diagonal FOV measures angular distance from one corner of rectangular frame to opposite diagonal corner. Horizontal FOV measures frame strictly from left edge to right edge. On 16:9 ratio, horizontal coverage is approximately 10% to 15% smaller than diagonal figure.

What field of view is best for Zoom and office meetings?

A 65° to 78° DFOV works best for typical solo office calls. This angle frames head, shoulders, and upper chest naturally at standard 50 cm to 70 cm monitor distances, eliminating room distraction while maintaining professional visual presence.

Does changing webcam FOV in software reduce image quality?

Yes, if webcam uses fixed lens without optical zoom. Software adjustments crop center of sensor and upscale pixels to target output resolution. 1080p webcam cropped to 65° from 90° natively discards pixels, noticeably reducing visual sharpness.

Why does my face look distorted on a 90-degree webcam?

Wide-angle lenses compress perspective when placed close to subjects. Sitting within arm’s reach of 90° optic causes perspective distortion, exaggerating facial features closest to glass, such as nose, while stretching edges of head outward.
