Last updated: October 2, 2026

The best DAS enclosure under $200 balances drive density, cooling performance, and USB bus saturation. Direct-attached storage connects directly via USB and skips network hardware entirely. For high-capacity multi-drive setups on a single host PC without network latency, USB 3.2 Gen2 10Gbps models offer the best bandwidth headroom.

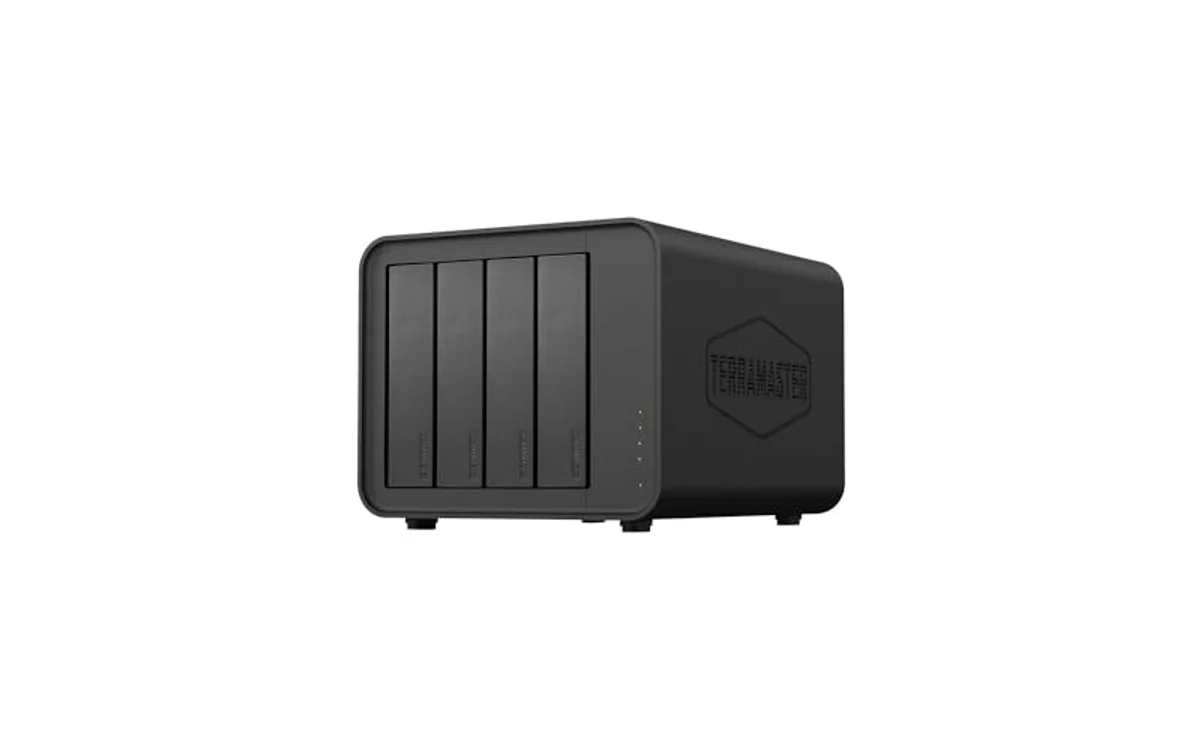

TERRAMASTER D4-320 External Hard Drive Enclosure 4-Bay
1
Best Seller

TERRAMASTER D4-320 4-Bay USB 3.2 Gen2 External

TERRAMASTER
9.6 /10 Outstanding
Editorial Score
This score is based on the average customer rating of the product at the retailer, converted to a 10-point scale. It is not a laboratory measurement. Product order in this guide follows its buying criteria. Learn more ›
The TERRAMASTER D4-320 is a 4-bay USB 3.2 Gen2 DAS enclosure for managing up to four SATA drives without RAID. Its high-speed 10Gbps connection, tool-free trays, hot swapping, and broad OS compatibility make it a strong choice for expanding desktop storage or organizing large media and backup libraries.
Pros & Cons

Pros

  • High-speed USB 3.2 Gen2 connectivity with strong multi-drive performance potential.
  • Large capacity support of up to 120TB total.
  • Tool-free installation and convenient hot-swapping support.
  • Compatible with multiple operating systems and modern USB or Thunderbolt interfaces.
  • Quieter, thermally managed design with standby noise below 21 dB(A).

Cons

  • No RAID functionality, so it does not provide built-in redundancy or pooled storage.
  • Requires separate 2.5-inch or 3.5-inch SATA drives, increasing the total setup cost.
  • Actual performance depends on the installed drives, host connection, file sizes, and system configuration.

DAS vs NAS: Key Technical Differences

DAS devices connect directly to a host computer over USB or Thunderbolt cables. NAS units contain independent CPUs, run network operating systems, and share data across local subnets over Ethernet. Users who need shared multi-client storage should examine entry-level NAS options instead. DAS enclosures operate purely as external storage expansion for a single PC, workstation, or media server.

FeatureDirect-Attached Storage (DAS)Network-Attached Storage (NAS)
Host ConnectionUSB-C / USB-A / ThunderboltEthernet / Wi-Fi
OS LayerHost system handles file systems (NTFS, APFS, EXT4, ZFS)Internal Linux-based storage OS (TrueNAS, DSM)
Throughput Ceiling5Gbps to 10Gbps (USB 3.2)1Gbps (112 MB/s) to 2.5Gbps (280 MB/s) typical budget NICs
Sub-$200 Capability4 bays, 10Gbps controller, JBOD/individual disk presentationUsually 1 or 2 bays, slower CPU, restricted RAM
Primary TargetLocal backups, video scratch workspace, Plex media hostMulti-user file sync, remote access, automated network backup

DAS Selection Factors Under $200

The sub-$200 price segment introduces structural limitations. Most enclosures in this range use hardware JBOD mode and present drives as individual disks (non-RAID), or rely on software RAID inside the host OS. Check the drive controller interface specs before matching disks from the list of recommended NAS and bulk hard drives.

  • Interface Throughput: USB 3.0 / USB 3.2 Gen1 caps at 5Gbps (~450 MB/s actual). USB 3.2 Gen2 provides 10Gbps (~1,050 MB/s actual). Gen2 bandwidth is necessary when populating multiple bays with SATA SSDs or fast mechanical drives running concurrent operations.
  • Controller Topology: Multi-bay enclosures share the host USB connection via an internal SATA port multiplier or a PCIe-to-SATA bridge chip. Port multiplier topologies share total bandwidth across active bays.
  • Thermal Dissipation: High-capacity 7200 RPM helium and air drives generate 7W to 10W each during write bursts. Enclosures require active fans. Passive enclosures cause thermal throttling or drive disconnects.
  • Tray Mechanism: Tool-free locking trays reduce drive vibration noise and stop accidental disconnects during cable adjustment.

Budget DAS Enclosure Comparison

ModelBay CountInterfaceMax Stated CapacityRAID Type
TERRAMASTER D4-3204-Bay (3.5″ / 2.5″)USB 3.2 Gen2 Type-C (10Gbps)Up to 120TB (4x 30TB)Individual Disks (Non-RAID / Software RAID)

TERRAMASTER D4-320 External Hard Drive Enclosure

The TERRAMASTER D4-320 External Hard Drive Enclosure leads the budget 4-bay category under the $200 limit. The hardware targets workstations that require large bulk capacity without network overhead. The device features a 10Gbps USB 3.2 Gen2 Type-C interface, backward compatible with USB 3.0, Thunderbolt 3, and Thunderbolt 4 host ports. The unit accepts 3.5-inch SATA hard drives, 2.5-inch SATA mechanical drives, and 2.5-inch SATA SSDs.

Key architectural detail: the enclosure functions in non-RAID mode. The controller exposes up to four individual storage volumes directly to the host operating system. Users configure software-based pooling manually, such as Windows Storage Spaces, macOS Disk Utility RAID, or Linux mdadm / ZFS pools. The internal bridge routes up to a combined 1,016 MB/s across multiple bays under optimal sequential drive operations. Single SATA SSD reads reach the 510 MB/s bus limit. Verify current retail pricing on the product card above.

The cooling system uses a temperature-controlled exhaust fan coupled with sound-dampening interior panels and vibration-reducing rubber drive tray mounts. Noise emissions drop to a rated 21 dB(A) in the idle state. Push-lock mechanical trays prevent bay unseating while hot-swapping adjacent disks. The enclosure is an excellent pick for dedicated media libraries or host-managed backup archives found across storage ecosystem guides.

Diagnostic & Compatibility Analysis

Configuration GoalRecommended Enclosure ConfigurationPotential Bottlenecks / Pitfalls
Bulk Media Library (Plex Host)4x 3.5″ 5400/7200 RPM HDDs, individual disk modeHost PC must stay powered; sleep states may park drives
Software RAID 5 / 10 ArrayHost-managed software RAID (Storage Spaces, ZFS, mdadm)High USB controller load; unstable USB hubs cause array degradation
High-Speed SATA SSD CacheUp to 4x 2.5″ SATA SSDsTotal enclosure cap at 10Gbps shared across all bays
Cold Backup RotationSingle disks inserted, hot-swapped for off-site storageRequires safe OS volume unmount before physical drive ejection

Setup & Stability Verification Checklist

  1. Direct Connection: Connect the DAS cable directly into a motherboard rear I/O port. Avoid unpowered external USB hubs. Weak host controllers cause drops during large multi-gigabyte transfers; review fixes for external drive disconnect issues if the connection drops.
  2. Host OS Sleep Settings: Disable USB Selective Suspend inside Windows Power Options, or uncheck “Put hard disks to sleep” inside macOS Settings to avoid drive dropouts during background array parity checks.
  3. Thermal Verification: Confirm the rear fan intake is unobstructed. Keep a minimum of 10cm clearance behind the chassis exhaust grill.
  4. Initial Volume Format: Initialize each disk using the GUID Partition Table (GPT) inside the OS disk utility. MBR tables limit recognized capacity to 2TB per drive.
  5. Safe Ejection: Eject the software volume inside the operating system before using the physical push-lock tray release. The DAS hardware hot-swap feature requires a software filesystem dismount to avoid directory table corruption.

Frequently Asked Questions

Can the D4-320 run hardware RAID 5?

No. The enclosure controller lacks a hardware RAID processor and physical DIP switches. The operating system sees up to four separate drives. Users configure software striping, mirroring, or parity arrays inside host OS management tools.

Can budget DAS enclosures connect to Wi-Fi routers via USB?

Most home routers lack driver support for USB multi-disk bridge chips. Router USB ports typically recognize only the first disk bay and fail to route the remaining drives. For shared network storage, choose a dedicated NAS device instead.

Does USB 3.2 Gen2 10Gbps bottleneck four mechanical hard drives?

No. Standard 7200 RPM mechanical SATA drives max out at 250 MB/s to 280 MB/s sequential transfer rates. Four mechanical drives reading simultaneously reach around 1,000 MB/s, fitting neatly within the 10Gbps USB 3.2 Gen2 usable throughput ceiling.
