Select the best 2 bay USB hard drive enclosure by matching drive controller modes, interface speed, and cooling setups. Hardware RAID models mirror data locally across disks, while non-RAID multi-drive units expose separate volumes over high-speed USB lines. Check connection limits and active fan configurations before installation to avoid transfer throttling.

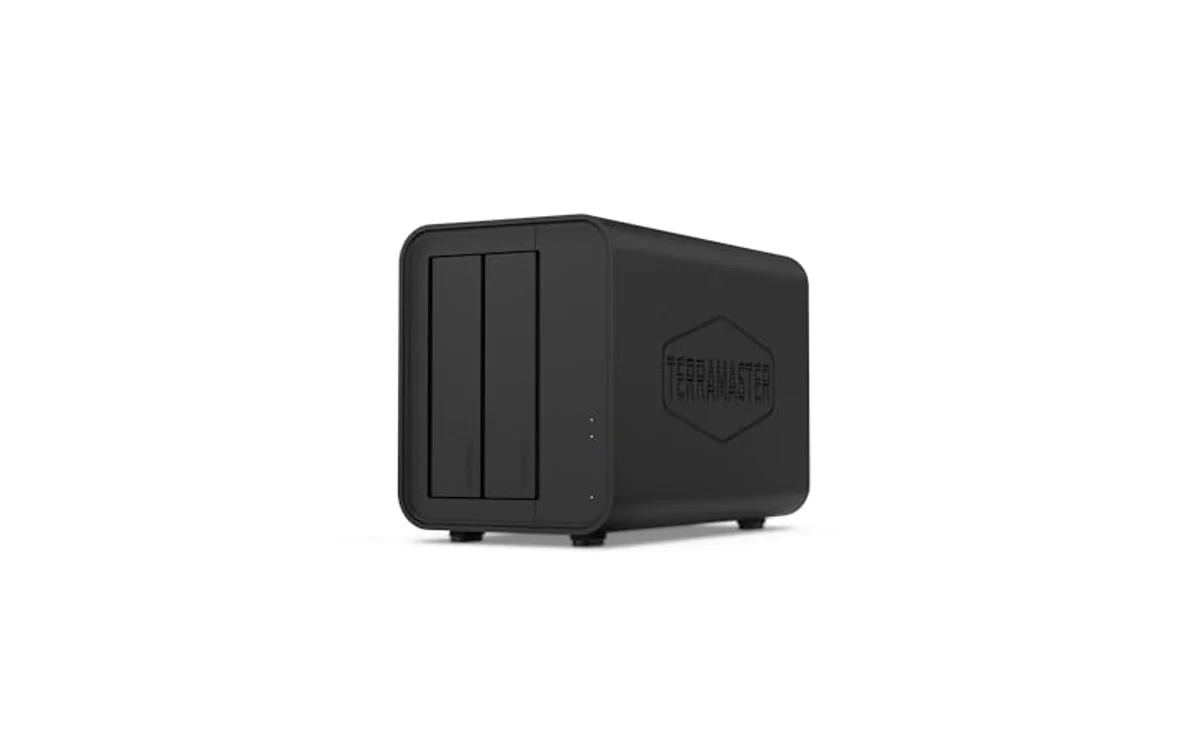

TERRAMASTER D2-320 USB RAID Enclosure 2-Bay (Diskless)

Compare at a Glance

#ProductEditorial ScoreSizeDimensions
1CENMATE 2-Bay Aluminum Hard Drive Enclosure9.4 Excellent2 bay7.9527558974 x 5.1968503884 x 3.4645669256 inches
2TERRAMASTER D2-320 2-Bay USB 3.2 Gen2 10Gbps9.5 Outstanding222 x 119 x 154 mm8.74 x 4.68 x 6.06 inches
3CENMATE 2-Bay USB 3.2 Gen 2 Hard9.8 Outstanding2 bay7.9527558974 x 5.1968503884 x 3.4645669256 Inches
1
Top Pick Best Seller

CENMATE 2-Bay Aluminum Hard Drive Enclosure

cenmate
9.4 /10 Excellent
Editorial Score
This score is based on the average customer rating of the product at the retailer, converted to a 10-point scale. It is not a laboratory measurement. Product order in this guide follows its buying criteria. Learn more ›
Dual-bay aluminum DAS supports up to 40TB total storage with tool-free swaps and USB 3.0 speeds. Ideal for users needing massive direct-attached capacity without network complexity.
Pros & Cons

Pros

  • Solid aluminum casing improves heat dissipation and physical drive protection
  • Daisy-chain support allows massive external storage expansion across three units
  • Tool-free hot-swappable trays make disk swaps fast and simple
  • Broad compatibility with both 2.5-inch and 3.5-inch SATA HDDs and SSDs

Cons

  • Internal cooling fan operates at 40-50dB and may annoy noise-sensitive users
  • Lacks hardware RAID modes and network NAS functionality
Specifications

Drive Bays: 2 bays supporting 2.5-inch and 3.5-inch SATA I/II/III HDD and SSD.

Maximum Capacity: Up to 20TB per bay, 40TB total (expandable to 120TB via 3-unit daisy chain).

Host Interface: USB 3.0 Type-A and Type-C, backward compatible with USB 2.0.

Data Transfer Rate: Up to 5Gbps.

Cooling: Aluminum chassis with integrated 2-inch fan (40-50 dB noise level).

Dimensions and Weight: 7.95 x 5.20 x 3.46 inches; 2.12 lbs.

OS Compatibility: Windows 7 and above, macOS 9.1 and above, Linux.

2
-10%
TERRAMASTER D2-320 2-Bay USB 3.2 Gen2 10Gbps Hardware RAID Storage Enclosure
Editor's Pick

TERRAMASTER D2-320 2-Bay USB 3.2 Gen2 10Gbps

TERRAMASTER
9.5 /10 Outstanding
Editorial Score
This score is based on the average customer rating of the product at the retailer, converted to a 10-point scale. It is not a laboratory measurement. Product order in this guide follows its buying criteria. Learn more ›
$129.99 Save $13.00
$116.99
TERRAMASTER D2-320 deliver 10Gbps direct-attached storage with hardware RAID support up to 44TB. Top pick for video editors, backup tasks, local data expansion.
Pros & Cons

Pros

  • Fast 10Gbps USB-C data transfer
  • Built-in hardware RAID switch, no host CPU drain
  • Toolless Push-lock drive bays make install fast
  • Quiet temperature-controlled cooling fan

Cons

  • DAS only, no network NAS connectivity
  • Diskless unit require separate drive purchase
  • Plastic tray tabs need careful handling
Specifications

Drive Bays: 2-bay SATA (3.5-inch HDD, 2.5-inch HDD, 2.5-inch SSD)

Max Capacity: 44TB (22TB per drive)

Interface: USB 3.2 Gen2 10Gbps Type-C

RAID Modes: RAID 0, RAID 1, JBOD, Single

Cooling: Smart low-noise temperature-controlled fan

Dimensions: 222 x 119 x 154 mm

Weight: 2.87 lbs

3
Highest Score Limited Time

CENMATE 2-Bay USB 3.2 Gen 2 Hard Drive Enclosure

cenmate
9.8 /10 Outstanding
Editorial Score
This score is based on the average customer rating of the product at the retailer, converted to a 10-point scale. It is not a laboratory measurement. Product order in this guide follows its buying criteria. Learn more ›
CENMATE dual-bay enclosure provides fast 10Gbps USB 3.2 transfers and daisy-chain expansion for massive SATA storage. Ideal for creators and workstation users needing high-capacity desktop DAS without complex RAID setup.
Pros & Cons

Pros

  • Fast USB 3.2 Gen 2 transfer speeds up to 10Gbps
  • Sturdy aluminum chassis with active cooling fan for heat management
  • Daisy-chain support scales storage across multiple enclosures
  • Hot-swappable bays permit rapid drive changes without down time

Cons

  • Cooling fan emits noticeable noise between 40 and 50 decibels
  • No built-in hardware RAID or network NAS functionality

2 Bay USB Storage Comparison

Dual-bay direct-attached storage (DAS) units provide high-capacity storage expansions without network routing overhead. Below is a specification-based summary of verified models. Verify live price and active stock on the respective product cards.

Product NameInterface ProtocolRAID SupportMaximum Drive CapacityCooling Method
TERRAMASTER D2-320USB 3.2 Gen 2 (10Gbps)RAID 0, 1, JBOD, Single44TB (22TB x 2)Smart Temperature-Controlled Fan
CENMATE Aluminum 2 Bay 10GbpsUSB 3.2 Gen 2 (10Gbps)Non-RAID (Individual disks)40TB (20TB x 2)2-inch Active Fan (40-50 dB)
CENMATE Aluminum 2 BayUSB 3.0 (5Gbps)Non-RAID (Individual disks)40TB (20TB x 2)2-inch Active Fan (40-50 dB)

Architecture Decision Matrix: Hardware RAID vs. Multi-Drive DAS

Choosing an enclosure class depends directly on storage layout needs. Multi-bay USB enclosures use two main bridge chip implementations:

  • Hardware RAID Bridges: These bridges manage striping or mirroring at the enclosure level. The host system sees a single unified volume. The design reduces host CPU overhead. Changing modes requires drive reformatting.
  • Independent Multi-Drive JBOD Bridges: These bridges present each inserted drive as a distinct drive letter or mount point. Ideal when mixing drive sizes, repurposing disks from older builds, or handling pooled storage software.

Users needing autonomous network backups should evaluate a dedicated NAS for home backup instead of direct-attached USB enclosures. If drive drops occur under load, review fixes for when an external SSD disconnects during file transfer to diagnose link sleep states and bus issues.

Top 2 Bay USB Hard Drive Enclosures

TERRAMASTER D2-320 USB RAID Enclosure 2-Bay

The TERRAMASTER D2-320 operates on the USB 3.2 Gen 2 protocol, providing up to 10Gbps of interface bandwidth. The hardware RAID controller supports RAID 0, RAID 1, JBOD, and Single disk modes. In RAID 1 mirror mode, the device performs automatic drive rebuilds upon insertion of a replacement disk. The unit accepts 2.5-inch and 3.5-inch SATA hard drives or SATA solid-state drives up to 22TB per bay, giving a 44TB maximum pool. The enclosure features tool-free bays using a Push-lock latching system. A built-in temperature-controlled fan modulates speed dynamically according to internal thermal sensors. The model targets workloads requiring localized disk redundancy without network layer complications.

CENMATE Aluminum 2 Bay 10Gbps Hard Drive Enclosure

The CENMATE Aluminum 10Gbps enclosure leverages a USB 3.2 Gen 2 controller for high-throughput single-drive operations. The unit does not feature built-in hardware RAID. The enclosure exposes drives as independent volumes. The unit accepts two SATA drives up to 20TB each (40TB total addressable). An extruded aluminum chassis integrates a 2-inch cooling fan operating at roughly 40-50 decibels. The rear I/O incorporates a USB Host pass-through daisy chain port, letting users link up to three enclosures into a single upstream system connection. The design suits independent disk pooling, manual backups, and multi-disk workstation expansions where software defines the array layout.

CENMATE Aluminum 2 Bay Hard Drive Enclosure

The CENMATE 5Gbps dual bay enclosure delivers budget-focused storage connectivity via standard USB 3.0. The non-RAID design presents both installed SATA drives as separate disks. The enclosure supports drive sizes up to 20TB per slot across 2.5-inch and 3.5-inch formats. The chassis is aluminum with a rear 2-inch exhaust fan emitting 40-50 decibels of noise. The unit features tool-free drive trays with hot-swap capabilities and a secondary daisy chain port for multi-unit connections. The design serves basic mass storage needs, cold archiving, or unstriped media libraries that do not saturate the 5Gbps USB bus limits. Users pairing mechanical disks can check our guide to the best hard drive for NAS to source continuous-duty drives.

Pre-Purchase Verification Checklist

  1. Port Standards: Ensure the computer has a matching USB-C or USB-A port capable of supporting the selected enclosure speed (USB 3.0 5Gbps vs. USB 3.2 Gen 2 10Gbps).
  2. RAID Switch Placement: For hardware RAID models, verify that switches or software configuration utilities are easily accessible before loading data. Setting RAID modes wipes all data on the inserted drives.
  3. Acoustic Footprint: 2-inch fans generate a persistent whine around 40-50 dB. Place the enclosure beneath the desk surface if running active mechanical drives in quiet workspaces.
  4. Drive Power Requirements: Dual 3.5-inch mechanical drives pull high current during initial spin-up. Always use the dedicated external DC power adapter.

Frequently Asked Questions

Can a 2-bay USB enclosure operate with only one drive installed?

Yes. Multi-disk enclosures run standard operations with a single SATA hard drive or SSD installed. In hardware RAID enclosures, Single or JBOD mode must be selected to initialize a standalone drive.

What is the difference between DAS enclosures and NAS units?

A direct-attached storage (DAS) enclosure connects directly via USB cable to one host computer. The enclosure lacks an operating system, a network controller, and independent file-sharing protocols. A network-attached storage (NAS) unit runs an internal CPU and software accessible across a LAN over Ethernet.

Do USB enclosures format drives automatically?

Enclosures themselves do not partition drives, but setting up hardware RAID creates a raw array requiring operating system initialization. Switching between RAID 0, RAID 1, or JBOD destroys partition tables, erasing data.
