Quick answer: An external SSD disconnects during file transfer when continuous write operations exceed available USB bus power, trigger thermal shutdown, or activate aggressive operating system power management states. The primary trade-off involves reducing sustained transfer speeds to maintain connection stability, constrained by host port wattage limits and motherboard USB controller bandwidth.

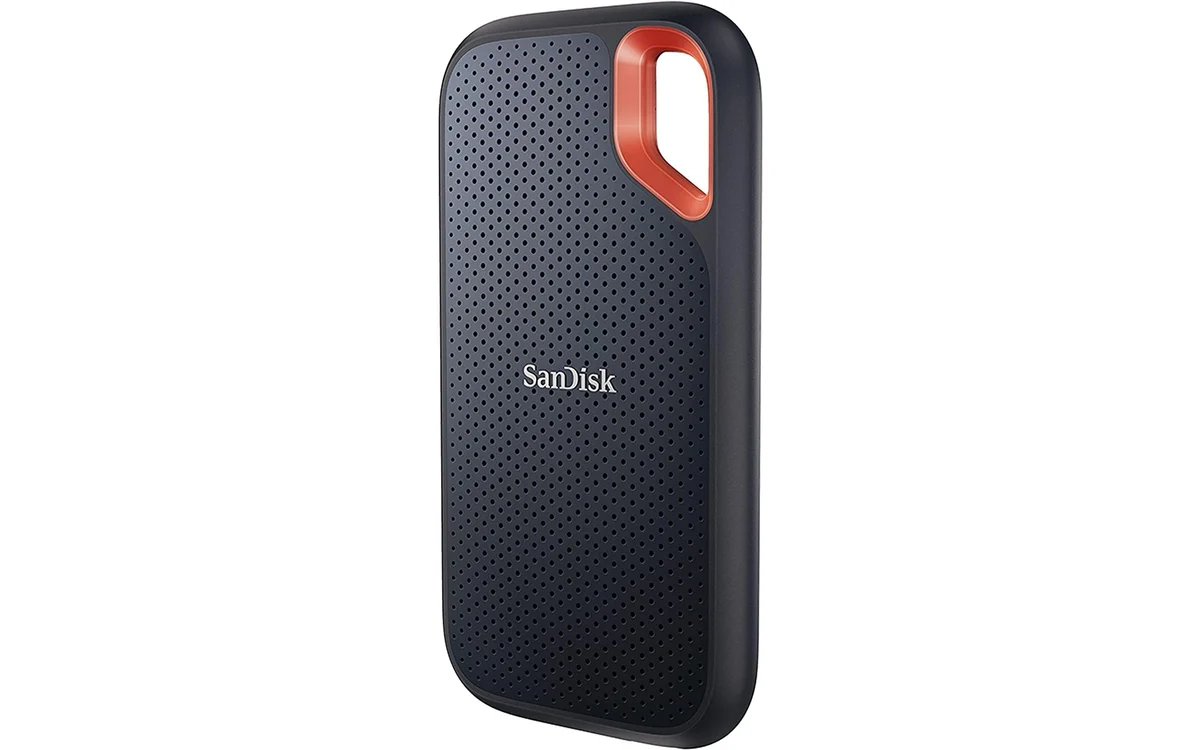

SANDISK 2TB Extreme Portable SSD (Old Model) - Up to 1050MB/s

Short answer: When an external Solid-State Drive (SSD) drops connection mid-transfer, the host system loses communication with the storage bridge controller. This occurs during intense Input/Output (I/O) spikes due to insufficient bus voltage, thermal protection cutoffs, or faulty Universal Serial Bus (USB) handshakes. Resolving this prevents file system corruption, partition loss, and hardware drive failure.

For PC builders managing data libraries across External SSDs, unexpected disconnections present severe data-integrity hazards. The problem intensifies during large sequential writes, such as multi-gigabyte video renders or game installations, placing maximum load on NAND flash memory and interface bridge controllers.

What Is External SSD Disconnects During File Transfer?

An external SSD disconnects during file transfer when the host operating system abruptly unmounts the storage volume mid-operation. The drive disappears from File Explorer or Finder, writes abort immediately, and an I/O device error dialog appears. This hardware failure differs fundamentally from standard software application freezes or slow write speeds.

In standard transfers, an SSD thermal-throttles or caps write speeds when internal SLC (Single-Level Cell) write caches fill. A complete disconnect signals a total link renegotiation failure between the host USB/Thunderbolt controller and the SSD bridge chip (such as ASMedia, Realtek, or JMicron bridge ASICs). The physical link drops, forcing the operating system to release the mount point.

Why External SSD Disconnects During File Transfer Matters

Uncontrolled drive unmounting causes silent data corruption. When write-caching is active, the OS reports data written before flash memory completes the physical write. A sudden power drop leaves files half-written, corrupting Master File Tables (MFT) or GUID Partition Tables (GPT).

Gamers and creators running high-bandwidth workflows feel the greatest impact. Games loaded from external storage crash directly to the desktop when textures stream during live gameplay. High-bitrate video editing timelines drop offline instantly, locking render scratchdisks. Sustained reliability across External SSD drives determines whether portable drives remain viable for local backup and creative work.

Drive lifespan suffers repeated damage. When power cuts abruptly during active flash block erase and write cycles, NAND cell degradation increases, forcing the drive controller into read-only recovery mode.

How External SSD Disconnects During File Transfer Works

The disconnection event stems from four distinct hardware failure states involving power delivery, bridge controller logic, thermal trip limits, and interface power-saving layers.

1. Power Sag and Bus Undervoltage

USB ports deliver specific power limits: USB 3.2 Gen 1 and Gen 2 ports provide up to 4.5W (5V at 0.9A). High-performance NVMe (Non-Volatile Memory Express) SSDs inside portable enclosures can spike to 5W–7W during heavy continuous writes. When current demands spike, host port voltage drops below the 4.75V operational threshold. The SSD controller browns out, cycles off, and forces an immediate bus reset.

2. Thermal Cutoff and Controller Crash

External enclosures pack compact controllers into unventilated metal or plastic shells. Continuous transfers push controller dies beyond safe operating envelopes (typically 75°C to 85°C). While drives should throttle write throughput, cheap bridge chips fail under sustained heat and crash, severing the USB-to-PCIe data bridge.

3. USB Selective Suspend and LPM Timeouts

Operating system power management utilizes Link Power Management (LPM) and USB Selective Suspend to power down idle devices. When high I/O requests choke the drive queue, the host can mistake a temporarily unresponsive drive for an idle device, sending a low-power U1/U2 state command that drops the active connection.

4. Physical Cable Impedance and Connector Degradation

High-speed USB transfers (10 Gbps and 20 Gbps) require tight signal integrity. Substandard cables, excessive cable length, loose Type-C ports, or worn ground pins introduce signal attenuation. When packet retry rates exceed permissible thresholds, the host USB controller resets the port.

Key Specifications and Terms

Term / Specification Hardware Function Critical Threshold Impact on Transfer Stability
VBUS Voltage Direct electrical power from host USB port Drops below 4.75V DC Causes drive controller brownout and disconnection
UASP (USB Attached SCSI Protocol) Commands queueing protocol across USB link Driver fallback to BOT (Bulk-Only) Prevents I/O command buffer overflows
Link Power Management (LPM) Sleep states (U0 active, U1/U2/U3 sleep) Timeout misconfiguration Accidentally forces drive offline mid-task
Bridge Chipset Translates NVMe/SATA commands to USB Thermal junction > 85°C Crashes communication pipeline under load
Type-C Impedance Signal resistance across copper traces High packet loss rate Forces controller into emergency bus renegotiation

Real-World Examples and Hardware Interactions

Understanding where failures manifest highlights the hardware relationship between host motherboards and portable storage drives:

Scenario A: Front-Panel Case Ports vs. Rear Motherboard Ports. Connecting a 10 Gbps portable SSD to a PC case front panel port via internal header extension cables adds significant trace resistance. During a 100GB file write, current demand peaks, voltage sags, and the drive disconnects halfway through. Moving the drive to a rear motherboard I/O port wired straight to the chipset provides clean, uninterrupted power.

Scenario B: Unpowered USB Hubs with Multiple Peripherals. A single laptop USB port split among an external drive, mouse, and mechanical keyboard cannot sustain aggregate current requirements. When write spikes hit, current limits trip, dropping the SSD off the bus instantly.

What to Look For When Buying

Preventing disconnections starts with choosing properly designed external hardware. Keep these priorities in mind:

  • Aluminum enclosure materials acting as direct thermal heat sinks via silicone thermal pads.
  • Bridge chips with verified firmware supporting standard UASP modes (e.g., ASMedia ASM2362 or Realtek RTL9210B).
  • In-box cables certified for 10 Gbps or 20 Gbps operation under 0.5 meters to prevent signal drop.
  • Hardware drives featuring low-power active states (<4W maximum sustained draw).
  • Enclosures featuring external auxiliary 5V power ports for massive array drives.

Common Mistakes to Avoid

Diagnosing drive drops involves systematically eliminating common user errors:

  • Using long generic charging cables: Many USB-C phone cables support 60W charging but fall back to USB 2.0 (480 Mbps) data connections with no shielding, causing bus errors during transfers.
  • Leaving Windows USB Selective Suspend enabled: The default Windows balanced power profile cuts power to ports it deems idle during long write pauses.
  • Overlooking drive cache exhaustion: Filling small TLC/QLC write caches drops write speeds rapidly; users often confuse this extreme thermal throttling with dropped connections.
  • Relying on unpowered passive hubs: Daisy-chaining external storage to unpowered splitters creates severe voltage bottlenecks.

Inspect physical Storage Accessories, including shorter USB 3.2 Gen 2×2 cables, to ensure physical links meet impedance specifications.

Quick Comparison

Compare the four most common underlying causes to locate your system bottleneck:

Failure Cause Primary Indicator Corrective Action Affected Users
Port Undervoltage Drive clicks or power LED flashes, then vanishes Switch to direct rear motherboard USB ports Desktop users using front-panel case ports
Thermal Overheating Disconnects occur only after 3–5 minutes of sustained writing Add thermal pads or use an aluminum enclosure Creators moving large RAW video folders
OS Power Saving Disconnect occurs during pauses between batches Disable USB Selective Suspend in Device Manager Laptop and Windows Power Saver users
Cable Loss Drive drops instantly when touched or moved Replace with 10 Gbps short braided cable Mobile and workstation users

Explore our hardware guides to optimize and configure your local storage configurations:

Why You Should Trust PCGearWiki

PCGearWiki cuts through marketing claims to deliver verified hardware analysis. We dissect technical specifications, evaluate protocol standards like PCIe, NVMe, and USB-IF revisions, and deliver unbiased diagnosis instructions. Our content links interface capabilities directly to measurable system stability. Read our full methodology on How We Evaluate Products.

Final Thoughts

When an external SSD disconnects during file transfer, the problem points to a physical hardware bottleneck rather than corrupted files. Address power drops first by plugging drives directly into rear motherboard ports. Swap thin charging cables for shielded USB 3.2 data cables, disable USB Selective Suspend, and ensure passive aluminum heat dissipation keeps controller chips cool under heavy transfers.

Frequently Asked Questions

Does formatting fix an external SSD that disconnects during transfer?

Formatting does not fix physical power drops or overheating bridge chips. However, switching from exFAT to NTFS or APFS improves drive write error handling, reducing system hang severity during burst operations.

How do I disable USB Selective Suspend on Windows?

Open Control Panel, navigate to Power Options, click Change plan settings on your active plan, choose Change advanced power settings, expand USB settings, expand USB selective suspend setting, and toggle it to Disabled.

Can a failing SSD cause disconnections?

Yes. When flash memory runs out of spare reserved blocks to replace failed sectors, the SSD controller locks all write operations to protect remaining data, resulting in dropped connections.

Why does my drive disconnect on front ports but work on back ports?

Front-panel ports rely on internal header cables running across the PC chassis. This added length drops voltage and attenuates 10 Gbps signals. Rear ports solder directly to the motherboard PCB, providing clean power and maximum signal integrity.
