Choosing the best gpu support bracket for rtx 5090 matters because high-end graphics cards are physically large, heavy, and expensive. A support bracket does not improve frame rates, but it can reduce visible GPU sag, help keep the PCIe slot from carrying unnecessary leverage, and make a premium build look cleaner.
For July 2026, we focused on GPU anti-sag accessories that make sense for RTX 5090-class systems: adjustable vertical stands, metal support posts, adhesive or magnetic base brackets, and vertical GPU mounting kits with anti-sag support. If you are still planning the graphics card itself, start with our RTX 5090 review before choosing the support hardware.
Based on available product data, the strongest choices are not all the same type. A simple aluminum post is usually the easiest fix for horizontal GPU sag, while a PCIe riser-based vertical mount is better when you want to display the card and your case has the airflow clearance to support it.
Pros
- All-metal build provides stronger lasting support than plastic alternatives
- Hidden magnet and cushion pad allow scratch-free easy installation
- Adjustable height range accommodates various graphics card sizes
- CNC detailing creates a high-quality finish suitable for visible builds
Cons
- Magnet base requires a flat metal surface inside the chassis
- Single size option may not suit very small or extra-large cases
- Proper height adjustment takes minor trial fitting
How to Choose the Best Gpu Support Bracket For Rtx 5090
The right RTX 5090 support bracket depends on your case layout, GPU thickness, bottom clearance, motherboard slot position, and whether you want a hidden functional brace or a visible display-style mount. The key is to support the card without blocking intake fans, pressing against the GPU fan shroud, or interfering with power cables.
Check Height Range Before Anything Else
Height range is the first compatibility filter. A stand that is too short will never reach the GPU shroud, while a bracket that starts too tall can lift the card instead of gently supporting it. For RTX 5090-class cards, measure from the case floor or PSU shroud to the flat support point under the graphics card.
The nkomax Graphics Card GPU Brace Support covers a listed 74-120mm range, which makes it better suited to builds where the card sits relatively high above the PSU shroud or case floor. The 75-120mm aluminum anti-sag bracket is similar and explicitly lists RTX 4090/5090 compatibility in the supplied product data.
Shorter brackets such as the 25-50mm magnetic-base stand are better for compact cases, low motherboard slot positions, or builds with a raised PSU shroud. Do not assume a universal bracket will fit just because it says GPU support; the measurement inside your actual case is more important than the product title.
Match the Base Type to Your Case Interior
Most standalone GPU support brackets use a magnetic base, adhesive base, or broad non-slip foot. Magnetic bases are convenient on steel case floors and PSU shrouds, but they may not grip aluminum panels or textured surfaces as firmly. Adhesive bases can be more secure, but they are less convenient if you frequently rebuild or change hardware.
The nkomax model uses a hidden magnetic base according to the supplied data, which is useful when you want quick installation without screws. The GPU support bracket with bottom adhesive is a better match when you want the stand to stay fixed during transport, though adhesive placement should be planned carefully before final installation.
For open-bottom cases, mesh PSU shrouds, or cases with uneven cable-routing cutouts, check that the bracket has a stable flat area to sit on. A support post placed on a vent, raised screw head, or cable cover can lean over time and create uneven pressure on the graphics card.
Prefer Metal Construction for Heavy RTX 5090 Builds
Material quality matters more with large flagship GPUs than with smaller mid-range cards. Metal brackets are generally preferred because they resist flex and do not age like basic plastic parts. That does not mean every plastic or ABS support is unusable, but a heavy RTX 5090 cooler deserves a support accessory that feels rigid and stable.
The nkomax bracket is listed as all-aluminum, with anodized finishing and CNC edge processing. The ASUS ROG Herculx models use solid zinc alloy construction according to their product titles, making them stronger premium options for builders who want a more polished visual piece inside a showcase PC.
ABS-based supports, such as the GSCOLER dual-mode bracket and Cooler Master vertical GPU holder kit, can still make sense when the design is case-mounted or part of a larger vertical mounting system. For a simple post-style anti-sag stand, however, aluminum or zinc alloy is usually the safer choice for a very heavy graphics card.
Decide Between Horizontal Anti-Sag Support and Vertical GPU Mounting
A standard GPU support bracket is the practical choice when your RTX 5090 is installed horizontally in the motherboard PCIe x16 slot. It supports the far end of the graphics card and usually installs without changing cables, slot layout, or airflow paths.
A vertical GPU kit is different. Products such as the Lian Li ATX PC Case 4 Slots Vertical GPU Kit and Cooler Master Vertical GPU Card Holder Kit V3 reposition the graphics card and rely on a PCIe riser cable. These are better for display-focused builds, but they require careful case compatibility checks and adequate side-panel clearance.
If your main goal is simply to stop sag, choose a direct support bracket. If your goal is to show off the RTX 5090 cooler and lighting, compare these options with our vertical GPU mount PCIe 5.0 buying guide before committing to a riser-based layout.
Avoid Blocking Fans, Cables, and Airflow
An anti-sag bracket should touch a solid part of the GPU shroud or backplate area, not a spinning fan, exposed heatpipe, soft cable, or decorative piece that can flex. On very large RTX 5090 models, the best support point is often near the outer end of the card, away from the PCIe slot.
Before tightening the support, check the GPU fans by hand with the system powered off. The stand should not intrude into the fan path, and the top pad should not push the shroud upward enough to change the card’s alignment. A bracket should remove sag, not force the graphics card above level.
Power cable clearance is another important RTX 5090 consideration. Make sure the support post does not crowd the GPU power connector or make the cable bend sharply. If your build also needs a power supply upgrade, see our RTX 5090 PSU guide.
Consider Tool-Free Adjustment and Visual Style
Tool-free adjustment is useful when you frequently remove the GPU, change cases, or adjust cable routing. Screw-adjusted support posts are simple and compact, while premium holders may add spirit levels, RGB lighting, and more elaborate housings.
The ASUS ROG Herculx GPU Anti-Sag Holder is the strongest premium example in the supplied data because it lists tool-free installation, an included spirit level, Aura Sync RGB, and a 2 year warranty. That makes it a better match for high-end ASUS-themed or RGB-heavy builds than for budget systems where the support will be mostly hidden.
For understated builds, a small black aluminum post such as the nkomax brace or the 75-120mm aluminum bracket is often cleaner. For glass-panel builds where the GPU area is a focal point, a larger holder with lighting or a vertical kit may justify the extra complexity.
| Model | Support Type | Notable Specification | Best For | Main Trade-Off |
|---|---|---|---|---|
| 75-120mm Aluminum GPU Anti Sag Bracket | Vertical support stand | 75-120mm adjustment; RTX 4090/5090 compatibility listed | Budget RTX 5090 anti-sag support | Basic feature set |
| nkomax Graphics Card GPU Brace Support | Aluminum support post | 74-120mm adjustment; hidden magnetic base | Metal support in standard ATX-style builds | Requires enough vertical clearance |

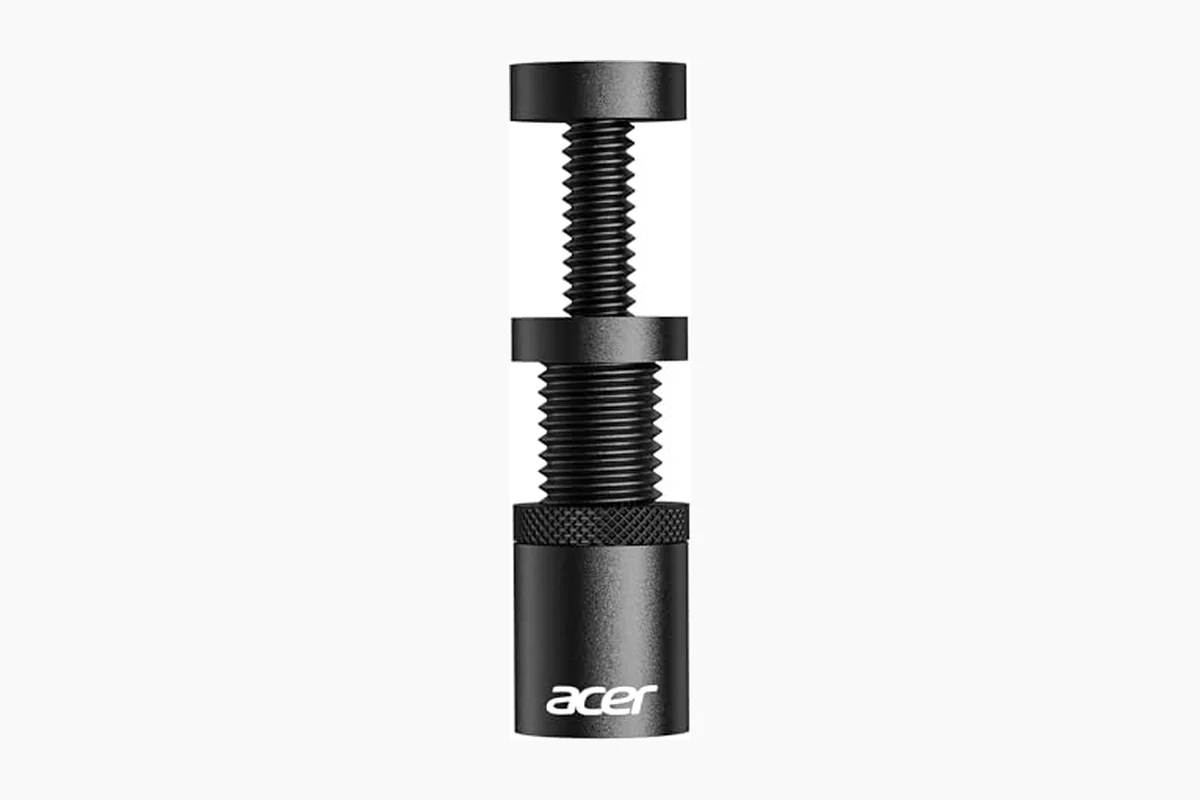

| acer GPU Support Bracket S | Short support stand | 25-50mm adjustment; magnetic and non-slip base listed | Compact cases or low-clearance GPU positions | Too short for many tower layouts |
| GPU Support Bracket with Bottom Adhesive | Adjustable support stand | 35-120mm adjustment; supports GPU thickness up to 75mm in supplied title | Builders who want a more fixed support point | Adhesive placement is less flexible |
| ASUS ROG Herculx GPU Anti-Sag Holder | Premium anti-sag holder | Zinc alloy; tool-free installation; spirit level; Aura Sync RGB | Showcase RGB builds | Larger and more premium than basic posts |
| Lian Li ATX PC Case 4 Slots Vertical GPU Kit | Vertical GPU mount kit | PCIe 5.0 x16 riser cable; anti-sag support listed | Display-oriented vertical RTX 5090 builds | Requires case and airflow compatibility checks |
| Cooler Master Vertical GPU Card Holder Kit V3 | Vertical GPU mount kit | PCIe 4.0/5.0 motherboard and GPU support listed; RTX 5090 listed | Vertical mounting in compatible ATX-family cases | More complex than a simple support bracket |
Shortlist: Which RTX 5090 Support Option Fits Your Build?
If you want the most direct answer, start with the 75-120mm aluminum GPU anti-sag bracket when you need a simple stand and your measured clearance falls within its range. It is the clearest budget match in the supplied data because RTX 4090/5090 compatibility is explicitly stated.
Choose the nkomax Graphics Card GPU Brace Support if you want an all-aluminum post with a hidden magnetic base and a tool-free support module. Its listed 74-120mm range makes it a strong option for many standard tower builds, but compact cases may need a shorter stand.
Choose an ASUS ROG Herculx holder if you care about aesthetics, RGB synchronization, and a more finished premium look. Choose the Lian Li or Cooler Master vertical kit only if you are intentionally converting the GPU to a vertical layout and have checked riser, slot, and side-panel clearance.
Why You Should Trust PCGearWiki
PCGearWiki evaluates PC hardware recommendations by separating verified specifications from editorial judgment. For this guide, we reviewed available product data including support type, adjustment range, listed material, installation method, stated compatibility, warranty where provided, and the practical needs of RTX 5090-class graphics cards.
We do not claim hands-on testing or lab measurements when they are not supplied. Our recommendations are based on specification research, compatibility screening, value assessment, and the likely fit for common PC builds. You can read more in our Review Methodology.
PCGearWiki may use affiliate links, but affiliate availability does not override product relevance. A support bracket must make sense for the stated RTX 5090 use case before it earns a recommendation in our GPU Reviews coverage.
Final Thoughts
Best Overall: The 75-120mm Aluminum GPU Anti Sag Bracket is the most straightforward overall pick from the supplied data because it directly lists RTX 4090/5090 compatibility, uses an adjustable support-post format, and fits the basic job most RTX 5090 owners need: reducing sag in a horizontal GPU installation.
Best Value: The nkomax Graphics Card GPU Brace Support is a strong value choice if your case has the vertical clearance for its 74-120mm range. Its all-aluminum construction, hidden magnetic base, screw adjustment, and anti-scratch support pad make it practical for builders who want a durable brace without moving to a vertical GPU kit.
Best Budget: The 75-120mm Aluminum GPU Anti Sag Bracket also earns the budget recommendation based on the available product data and its RTX 5090-relevant listing. The trade-off is that it appears to be a simple functional bracket rather than a premium display accessory.
Best Premium or Enthusiast Pick: The ASUS ROG Herculx GPU Anti-Sag Holder is the better premium pick for RGB showcase builds. Its listed zinc alloy construction, tool-free installation, spirit level, Aura Sync RGB, and warranty coverage make it more appealing for high-end systems where presentation matters as much as support.
If you are building around a flagship GPU, do not treat the support bracket as an afterthought. Measure your case, check the GPU cooler thickness, confirm power cable routing, and compare horizontal anti-sag brackets against vertical mounting only if your case airflow and layout can handle the change. For more RTX 5090 planning, revisit our RTX 5090 review.
How We Evaluated
PCGearWiki evaluates review and buying-guide recommendations by comparing product specifications, compatibility, real-world use cases, pricing, warranty coverage, and customer feedback patterns. Our goal is to explain not only which products look strong on paper, but which ones make sense for actual PC builds and daily use.
- Gaming performance by resolution, VRAM capacity, ray tracing, upscaling support, power draw, thermals, and noise.
- Case/PSU compatibility, display outputs, driver features, warranty, pricing, and value versus competing cards.
- Customer feedback patterns around coil whine, temperatures, fan noise, build quality, and real-world performance.
You can read more about our editorial standards and scoring process in our Review Methodology.
What Matters for an RTX 5090 Support Bracket
An RTX 5090 bracket must support the card without obstructing intake fans, front-panel cables, or a bottom-mounted radiator. Measure the distance from the case floor or PSU shroud to the card before choosing an adjustable pillar. A magnetic foot is useful only on a steel surface; otherwise, prioritize a wide non-slip base or a bracket that fixes to expansion slots.
Check the exact graphics-card dimensions because partner models vary from the Founders Edition. The bracket should contact a rigid part of the shroud near the unsupported end, not a fan, heat-pipe cover, or removable trim. After installation, confirm that the card remains level and that the PCIe connector is not being lifted out of alignment.
